What Is a Rim Joist & Does It Need to Be Insulated?

In today's climate-conscious age, forward-thinking homeowners are always on the lookout for new and better ways to reduce energy use, lower monthly expenses, and improve their carbon footprint.

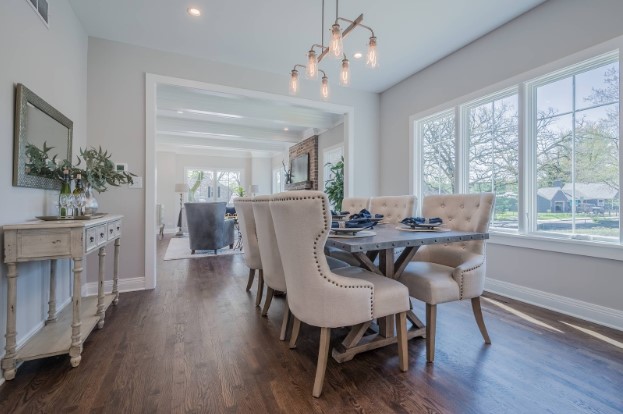

Home Design & Build by Hogan Design & Construction

There are many ways to make your home more energy-efficient, including using LED bulbs, installing energy-efficient appliances, switching to a smart thermostat, and replacing drafty old windows and doors.

Of all the energy-efficient improvements you can make, however, perhaps none is smarter or more impactful than ensuring your home is well-insulated. Proper insulation may start in your exterior walls and attic, but it goes all the way down to your basement or crawl space.

Here's why proper insulation is so important, and how it can make your home more energy-efficient than ever.

Wait… What Is a Rim Joist?

If snow melts relatively quickly around the foundation of your house when temperatures are still below freezing, chances are you’re losing heat through uninsulated rim joists. Time to get familiar with your floor system!

To understand what a rim joist is, it’s helpful to know about joists, which are the main structural elements of a floor frame (sometimes called a deck frame). The floor itself is like a platform that’s made up of several layers — a thick subfloor (usually made of plywood), a thinner underlayment, and a floor covering (wood, tile, carpet).

Beneath this platform, there’s a framework of perpendicular supports, or joists, that run the length and span the width of the entire floor. On the first floor of your home, this framework sits squarely on top of a sill that’s fitted to the top of your home’s foundation.

Either end of each floor joist is butted up against two other perpendicular supports called rim joists. Along with the two outermost floor joists, these two rim joists help form the “band,” or perimeter, of your floor system by supporting the ends of joists.

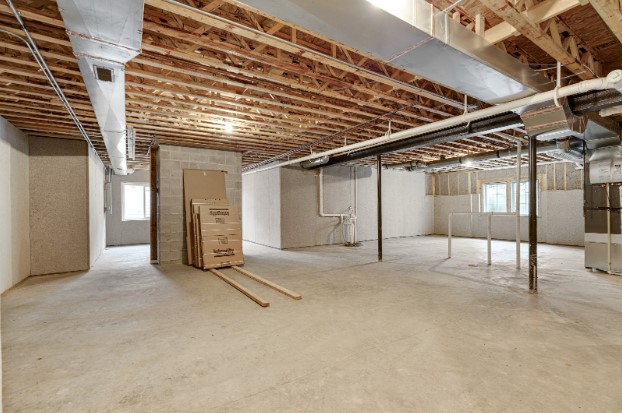

Basement by Hogan Design & Construction

Stopping the “Chimney Effect”

If you head down into an unfinished basement (or crawl space), you can see the exposed face of the rim joist between each floor joist, just above the foundation wall.

In most houses, the only materials standing between the rim joists and outside air are sheathing and siding. In cold-weather months, this creates the perfect recipe for considerable heat loss — and sky-high energy costs.

Rim joist air leaks aren’t as straightforward as they may seem, however. While heated air does escape through uninsulated rim joists along your home’s foundation, colder outside air is also drawn in by the so-called chimney effect or air leaks in the attic.

As the warm air generated by your furnace rises through your home and escapes through your attic, more cold air is drawn in through rim joist leaks in your basement. Besides making your entire home feel cold and drafty, this ongoing cycle drives your heating costs through the proverbial roof.

Proper sealing and insulation are crucial to prevent moisture intrusion and ensure that load distribution is managed effectively. Inspections can identify signs of rot in rim joists, which can compromise structural integrity.

Rim Joist Insulation Benefits

Many homeowners think that sealing attic air leaks is all it takes to stop the chimney effect. But the job isn't truly complete until you seal basement leaks, too. This is where rim joist insulation comes in.

Proper insulation along the rim joists of your home's foundation helps eliminate air leaks and keeps moisture out; it also creates a strong thermal barrier at the base of the building envelope itself. Whole-home benefits include:

• Minimal basement air leakage

• More consistent indoor temperatures year-round

• Lower energy consumption and cost

• Warmer floors in the wintertime

• Better moisture control and indoor air quality

Proper rim joist insulation simply means that the interior face of the exposed sections of each rim joist along your home's foundation should be fitted with a piece of air-impermeable rigid insulation, and then sealed along the edges with spray foam insulation.

Just don't make the common mistake of insulating your home's rim joists with fiberglass batts (see image below), as this air-permeable type of insulation lets air and moisture in and can lead to mold problems. A combo of rigid insulation and spray foam (or just spray foam) is definitely worth the extra cost.

The Importance of Proper Rim Joist Installation

Proper rim joist installation might not be the most glamorous aspect of construction, but it's absolutely critical for structural integrity and long-term durability. When these essential boards are correctly installed along the outer edge of your floor framework, they provide benefits that ripple throughout the entire building system.

First and foremost, rim joists provide crucial lateral support for your floor structure. When attached perpendicular to floor joists, they prevent the joists from rotating or twisting under pressure. This stability is essential whether you're building a deck or a floor system.

The connection between rim joists and other structural elements must be executed with precision. Using the appropriate nails or structural screws ensures that load transfer occurs properly throughout the framing. When correctly installed, rim boards work in harmony with beams and other structural elements to distribute all the load evenly across the foundation, preventing sagging and structural weakness.

For maximum effectiveness, rim joists should:

• Run the entire length of the structure's perimeter

• Be properly aligned with supporting studs in the walls

• Create a continuous band of support around the construction

• Be fastened securely to all the floor joists they span across, including both end joists (the first and last joists in each row)

• Maintain consistent spacing and alignment parallel to foundation walls

The carrying capacity of your floor system depends significantly on proper rim joist installation. These components act as a critical boundary, capping the floor framework and creating a solid attachment point for wall systems. When rim joists are compromised, the ripple effects can impact everything from floor stability to wall alignment.

For best results, always use the same material for your rim joists as your primary floor joists. This consistency helps prevent differential expansion and contraction that could compromise structural integrity. Whether your project uses traditional lumber boards or engineered wood products, maintaining material compatibility enhances the long-term performance of the floor or deck system.

The significance of proper rim joist installation cannot be overstated. These seemingly simple components provide essential support that impacts the entire building envelope. By focusing on correct installation techniques and quality materials, you ensure that your structure stands the test of time.
